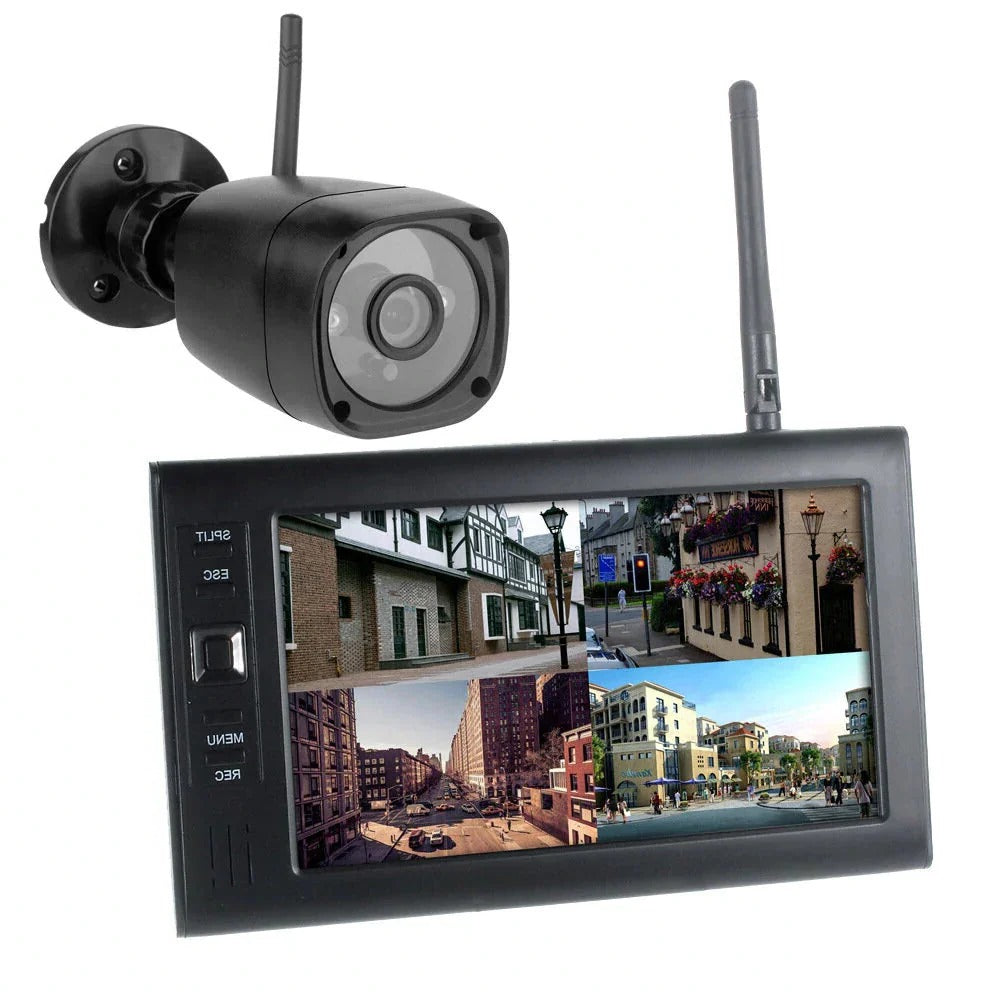

Wireless Home Security Alarm System with LCD Display

Wireless Security System with LCD Display – Comprehensive Home Monitoring Solution

This wireless security system offers a seamless setup for monitoring indoor or outdoor spaces with clarity and convenience. Featuring a high-definition LCD display and a digital wireless connection, it ensures interference-free video transmission for continuous coverage. Designed for effortless installation, it provides stable operation without requiring extensive wiring or additional equipment.

Efficient Operation and Clear Visuals

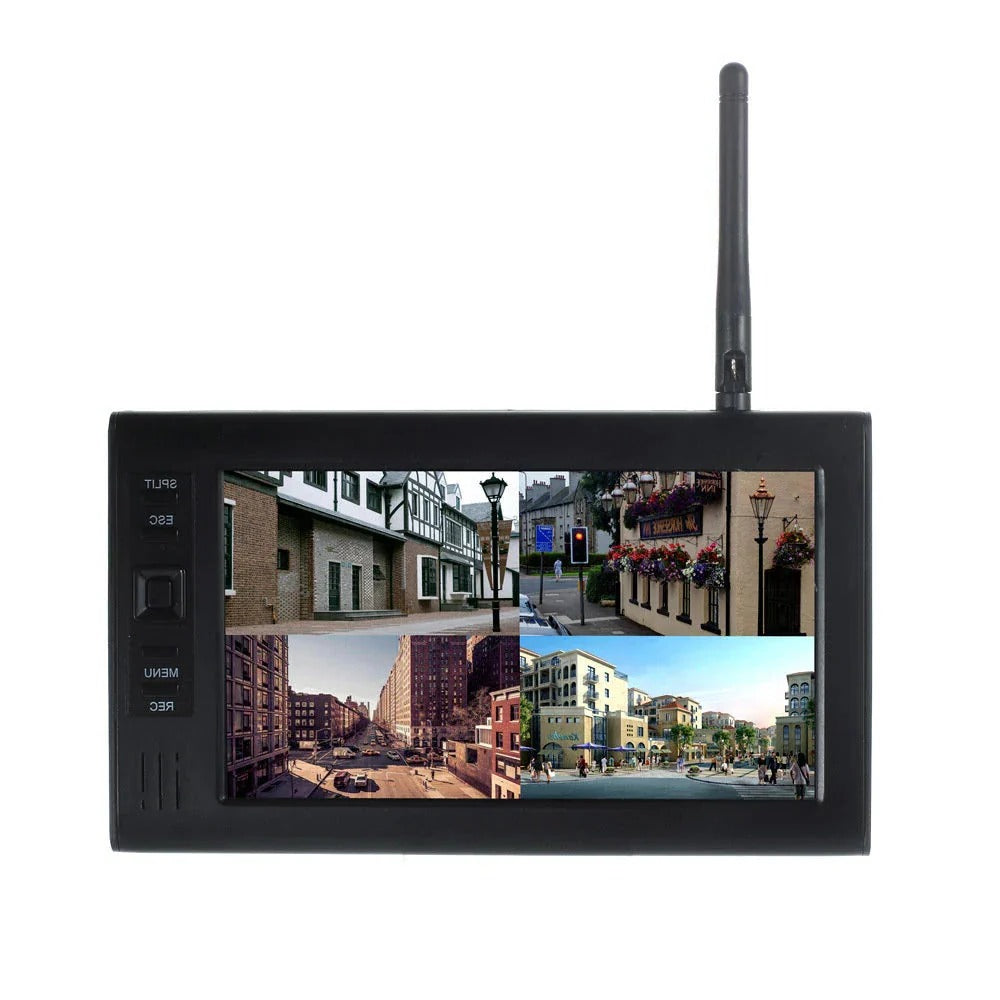

The integrated 7-inch LCD screen delivers sharp visuals with a 1024×600 resolution, allowing real-time monitoring of up to four cameras simultaneously. Equipped with a built-in DVR system, it supports 24/7 recording and various recording modes, including manual and scheduled options. The night vision capability ensures consistent performance even in low-light conditions.

Wireless Flexibility and Strong Connectivity

Operating on a 2.4GHz digital RF frequency, this system guarantees a secure and stable signal up to 330 feet in open areas. Both the camera and receiver include individual power adapters for reliable operation. The camera’s weather-resistant build ensures continuous outdoor use, while infrared night vision provides visibility of up to 50 feet.

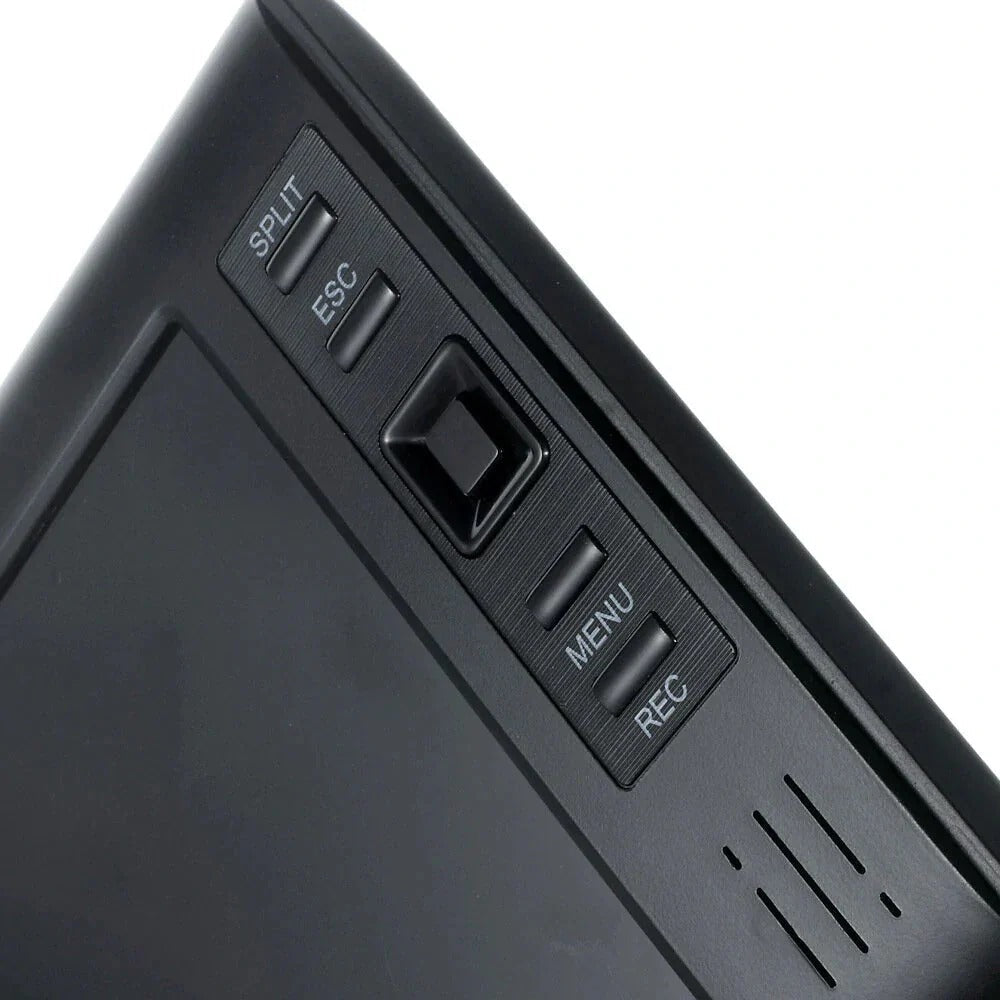

User-Friendly Functionality

With support for TF cards up to 32GB, the system offers convenient data storage and playback options. Its intuitive interface enables quick access to footage and camera control. Easy installation and versatile mounting options make it suitable for a variety of environments, from residential homes to small businesses.

Key Features

• 7-inch LCD monitor with 1024×600 resolution
• Digital wireless connection with up to 330 ft transmission range
• Supports 4 channels with simultaneous monitoring
• Infrared night vision up to 50 ft
• Recording options: manual and schedule modes
• Compatible with 32GB TF card for data storage
• Weather-resistant camera for outdoor use
• Easy installation – no wiring required

Technical Specifications

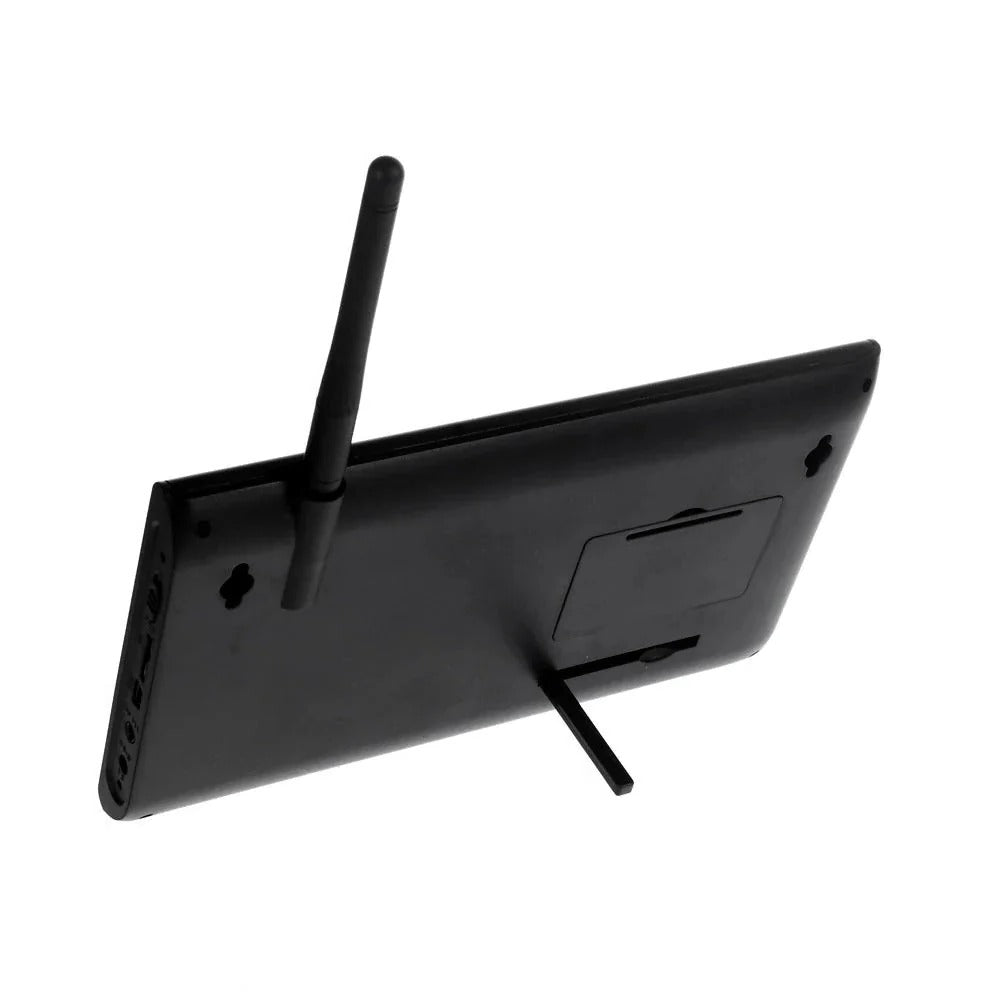

Receiver:

• Display: 7" TFT LCD screen
• Resolution: 1024×600
• Transmission Frequency: 2.4GHz digital RF
• Sensitivity: -85dBm
• Power Supply: DC 5V / 1000mA
• Transmission Distance: Up to 330 ft (without obstacles)
• Dimensions: 7.5 × 4.5 inches
• Battery Capacity: 1200mAh (rechargeable)
• Adapter Input: AC 100–240V, 50/60Hz

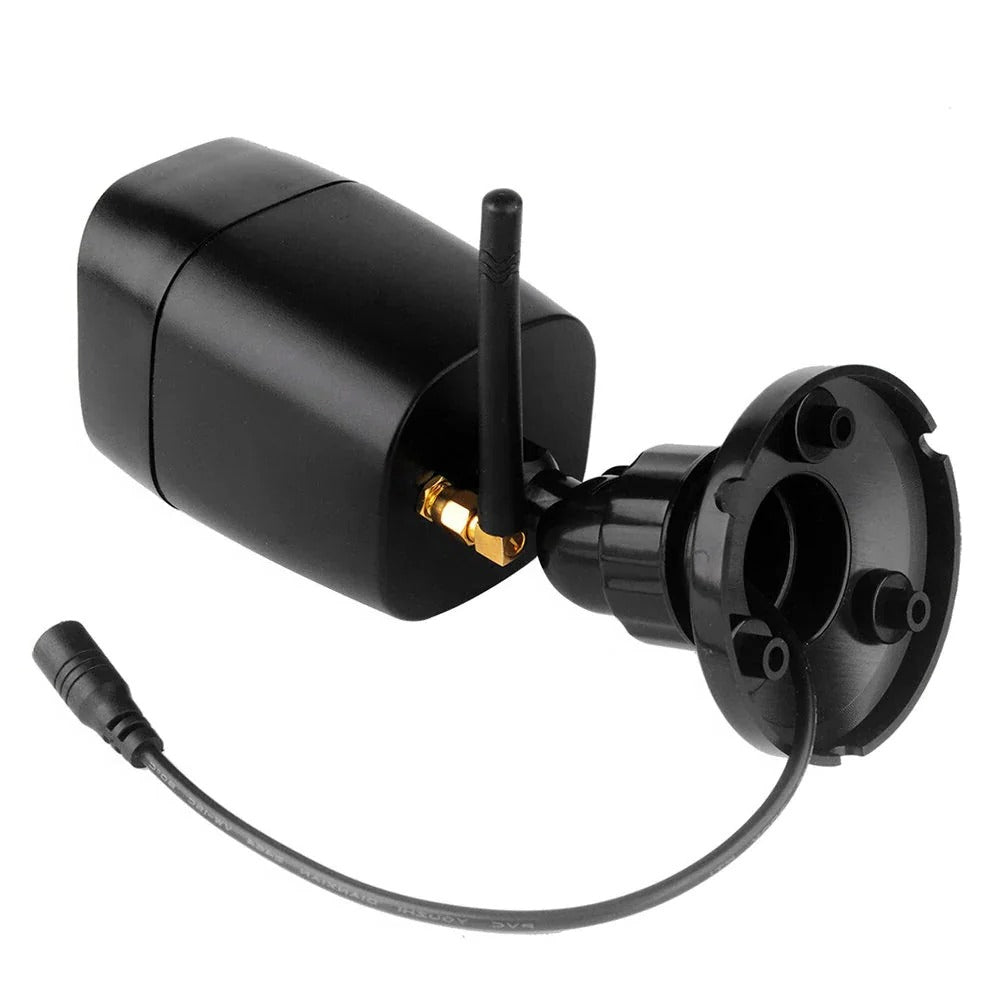

Camera:

• Image Sensor: 1/4" CMOS (720P)
• Resolution: 0.6 MP
• Minimum Illumination: 0 Lux (IR ON), 5 Lux
• Night Vision Range: 15 m (50 ft)
• Power Supply: DC 5V / 1000mA
• Transmission Frequency: 2.4GHz digital RF
• Weatherproof Rating: Suitable for outdoor use

What’s Included

• 1 × TFT LCD color screen
• 1 × Wireless camera
• 2 × Power adapters
• 1 × Mounting bracket
• 1 × User manual
